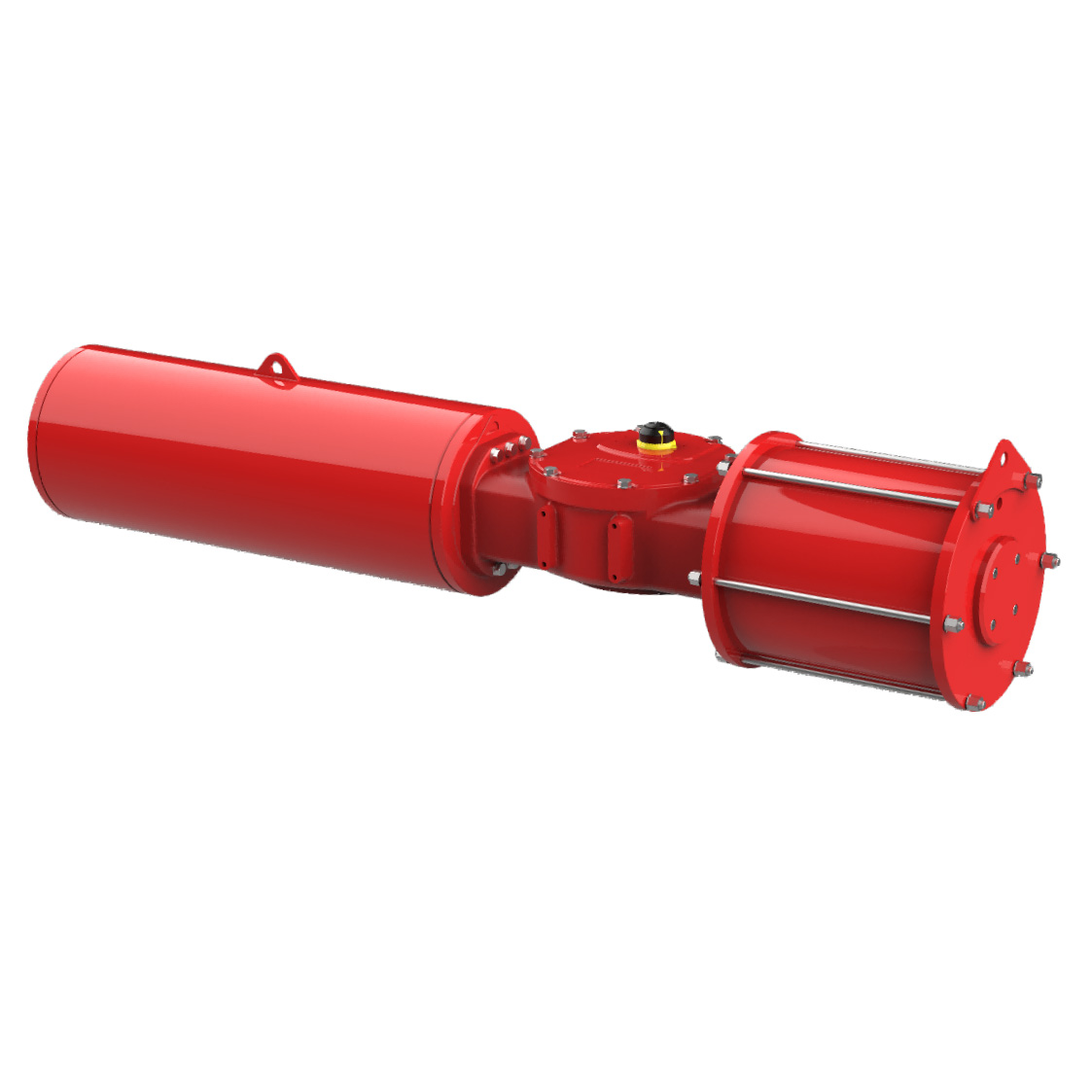

Heavy duty scotch yoke actuator, is a kind of angular stroke piston pneumatic actuator, yoke type pneumatic actuator design is delicate and compact, solid and durable, suitable for ball valves, butterfly valves, plug valves and other valves applicable to 90 ° angle of the switch off or regulation control.
1.Product Introduction
Scotch yoke actuators primarily automate valve operations. They convert linear motion into rotational motion efficiently. The basic scotch yoke mechanism consists of a sliding block that moves within a fixed yoke. This interaction between the sliding block and the yoke is crucial for the actuator’s operation. As the piston moves, it pushes the sliding block along the yoke, creating a rotational movement. This design allows for smooth and controlled actuation.
2. Product Parameter (Specification)
Model: JHD series
Spring end output torque: 424N.m - 81421N.m
Structure: Scotch yoke
Application: Ball valve, butterfly valve, plug valve and other valves
Air supply Pressure: 3 - 8 bar
Cylinder material: Carbon Steel
Center body material: Ductile Iron or Carbon Steel
Air source control: Through filtered compressed air, no need lubricate oil ,the oil must suit for NBR under lubricated condition.
Applicable ambient temperature:
Standard -20℃~80℃
Low temperature -40℃~80℃
High temperature -15℃~150℃
Flange standard: ISO 5211
Rotate stroke: 90°(+/-5°)
Service life: According to EN 15714-3
3.Product Features
Scotch Yoke Pneumatic Actuator double acting JHD2E0410YS has the below characteristics:
●Structure : Heavy duty scotch yoke spring return type.
●Low friction ,long service life according to EN 15714-3.
●Applied to angular stroke valves, ball valves, butterfly valves, plug valves and other valves.
●Mounting flange in accordance to ISO 5211.
●High quality ductile Iron or carbon Steel surface coating by painting .
●Certificate obtained : ATEX, EAC,CE, SIL3, ISO9001:2015 certificate.
●High-end products, excellent quality, complete certification system.
●All products in the factory undergo a rigorous testing, each individual is marked with tracking code for quick identification and complete tracking service.
●Functional modular: pneumatic modular ,spring modular, housing drive modular and etc., All modules can be assembled and replaced with each other; making the product more stable in performance and easier to maintain.

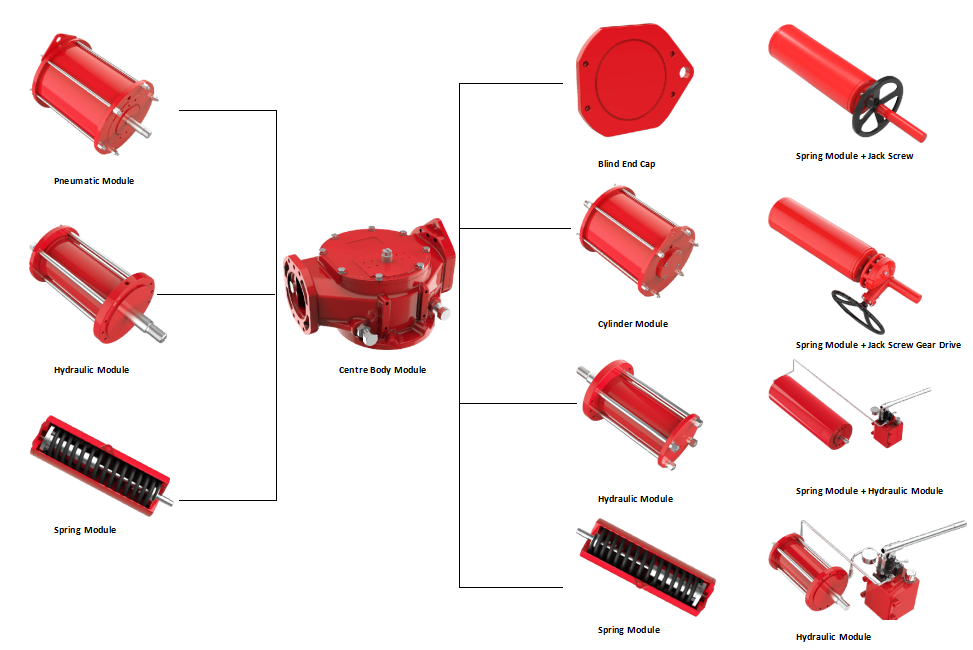

4.Module Option
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer who has specialized in pneumatic actuators and gear operators for more than 20 years, in Taizhou, Zhejiang province, China.
Q: If I am interested in your heavy duty scotch yoke actuator, when can i receive your quotation?
A: All your inquiries will be answered within 24 hours.
Q: Can you produce according to the customer's own technical drawings?
A: Yes, we offer personalized customization service.
