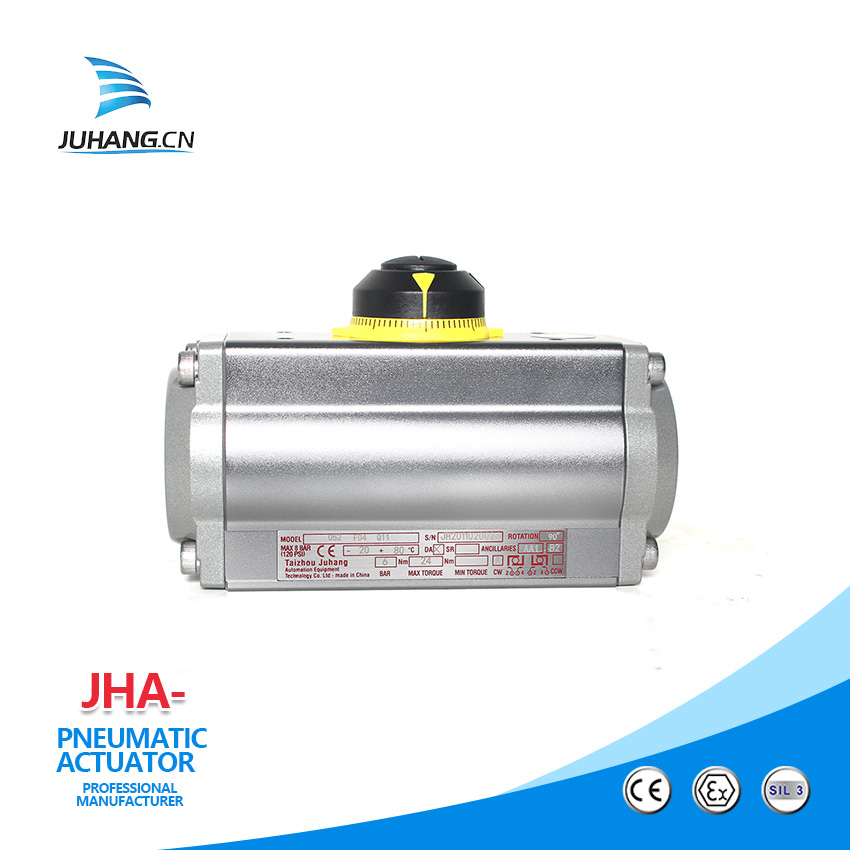

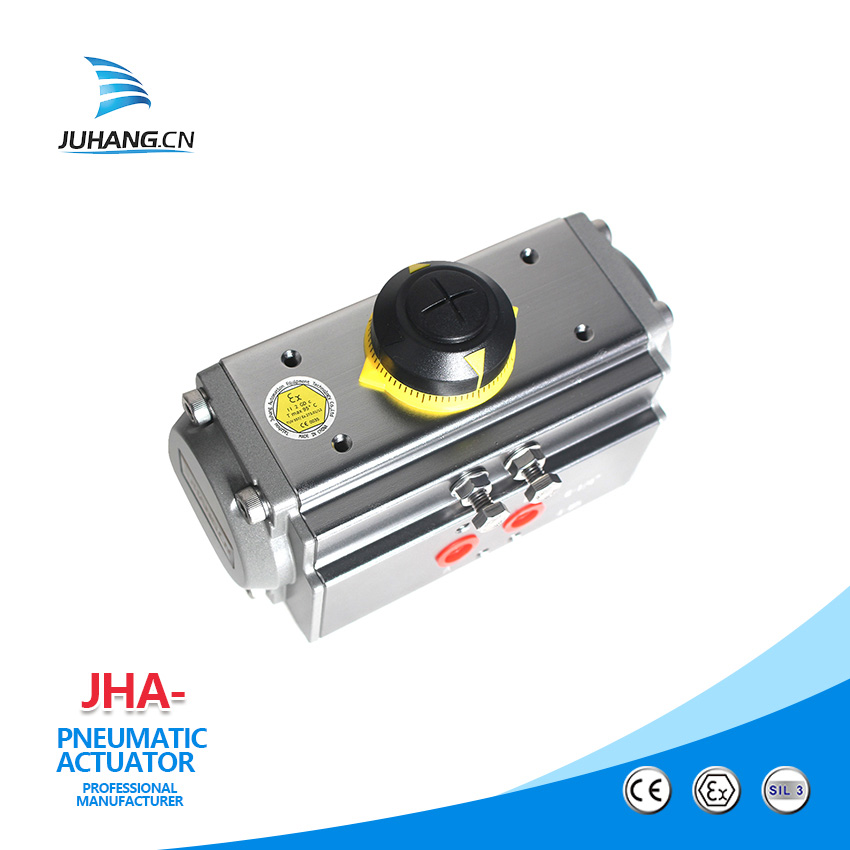

JHA serieslow temperature pneumatic actuator can adapt to the high temperature environment from -15°C to +120°C.Its outstanding reliability and security can meet your strict requirements for automatic control.
JHA series rack and pinion low temperature pneumatic actuators can adapt to the environment from -40°C to +80°C. Its outstanding reliability and safety can meet your strict requirements for automation control.
1.Product Introduction
The JHA series low-temperature pneumatic actuator uses a complete set of special material internal parts that can adapt to low-temperature environments, enabling it to maintain excellent performance in some low-temperature scenarios.
2. Product Parameter (Specification)
Model:JHA0012 DA - JHA8000 DA
Output torque:8 N.m - 10000 N.m
Structure:Rack and pinion structure
Application:Ball valve, butterfly valve, plug valve and other valv
Air Supply Pressure:3 - 8 bar
Cylinder body material:Aluminum alloy (surface coating: hard anodized)
End cover material:Die-casting aluminum alloy (surface coating: powder spraying)
Air source control:Through filtered compressed air, no need lubricate oil，the oil must suit for NBR under lubricated condition.
Applicable ambient temperature:Standard -20℃~80℃
Low temperature -40℃~80℃
High temperature -15℃~120℃
Flange standard:ISO 5211
Rotate stroke:0 - 90°(+/-5°)
Service life:Maintenance-free and low friction , switch service life more than 1 million times.
3.Product Features
low temperature pneumatic actuatorhave the below characteristics:
●Structure : compact rack and pinion pneumatic actuator.
●Low friction ,long service life and the switching times up to 1000,000 times.
●Applied to angular stroke valves, ball valves, butterfly valves, plug valves and other valves.
●Mounting flange in accordance to DIN/ISO5211,control valve with NAMUR standard.
●High quality aluminum alloy material, surface coating by hard anodized , hard nodized+Teflon and other options for special demands and requirements .
●Certificate obtained : ATEX, CE, SIL3, ISO9001:2015 certificate.
●High-end products, excellent quality, complete certification system.
●All products in the factory undergo a rigorous testing, each individual is marked with tracking code for quick identification and complete tracking service.
4.Product Details
Special material that can adapt to low temperature environment.
5.Factory Workshop
Juhang has advanced processing equipment, high-precision CNC machines, four-axis machining center and advanced technology, which can guarantee the high quality of precision products.The company also has laboratories for high-precision testing instruments.Sophisticated technology and strict quality management system, furthermore gathering professional technical elites and world-leading technology team, taking advantages of new technology, new processing and new materials to ensure the stability and reliability of our products.
6.Quality Inspection
Juhang has a strict inspection system, the most advanced inspection equipment and strict scientific management, so that each product from Juhang can meet various customer’s selection and requirements.
7.Company Certification
8.Exhibition
9.FAQ
Q: Are you a manufacturer or a trading company?
A: We are manufacturers who have specialized in pneumatic actuators and gear operators for more than 20 years, in Taizhou, Zhejiang province, China.
Q:What about the advantages for your pneumatic actuators?
A:Our pneumatic actuators have high quality and work well in extremely hostile environments.Maintenance-free and have very long service life.
Q: Can you provide more detailed information about low temperature pneumatic actuators?
A: Yes, of course. You can send your questions to us via e-mail. We will send you the information you need.
Q: I would like to visit your factory, is it possible?
A: Of course, your visit is our honor.
Q: What are your main markets?
A: Europe, South America, North America, Southeast Asia
