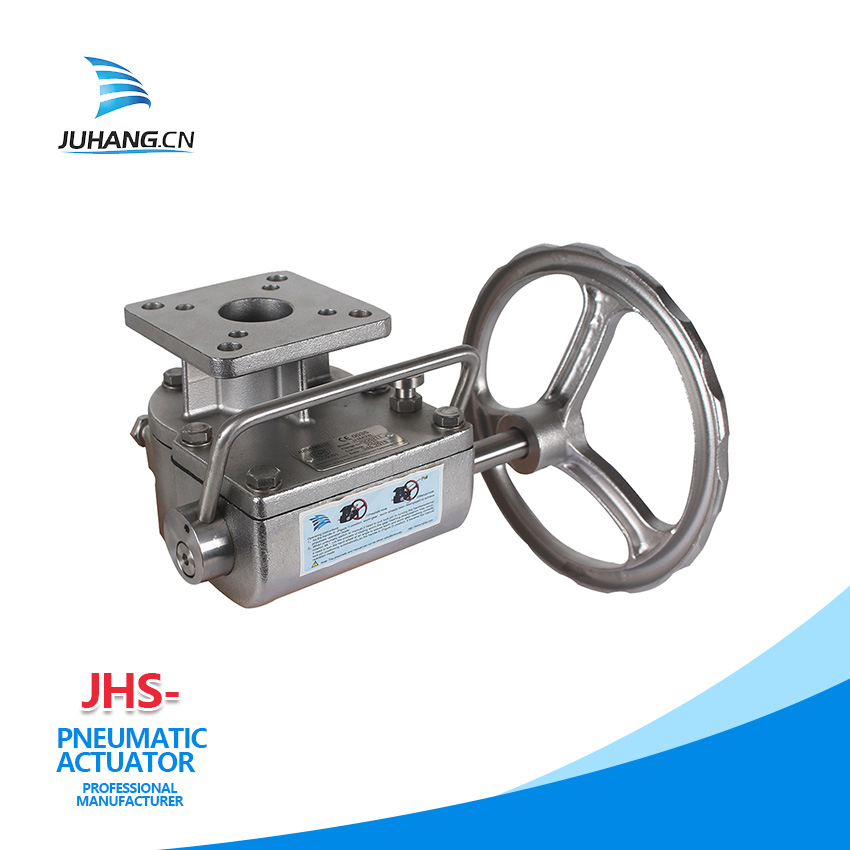

Stainless steel manual override gear box has stronger anti-corrosion properties and is widely used for pneumatic ball valves, butterfly valves, and plug valves to achieve manual operation when the system airpower got cut for installing or debugging.
1.Product Introduction
Stainless steel manual override gear box is available in stainless steel 304 or stainless steel 316 material depending on your requirements, please contact us for details.
2. Product Parameter (Specification)
Model：JHM40 - JHM62
Structure：Partial rotating clutch type manual actuator
Application：Ball Valve, Butterfly Valve, Plug Valve
Shell material: stainless steel.
Flange standard：ISO 5211
stroke：0-90°(+/-5°) mechanical position limitation
Temperature standard： Standard -20℃~80℃
Low temperature -40℃~80℃
High temperature -20℃~120℃
Ingress proection grade：IP67 seal, appliable to the standard environment，
special enviromment can customized to IP68
Safety valve： It can be installed with total gas safe control function , which can cut off air source and exhaust automatically
3.Product Features
stainless steel manual override gear boxhave the below characteristics:
●Completely-sealed box,the intemal is filled with grease to make longer life-cycle of worm gear box.
●Stroke:0-90° mechnical limit.
●Steel-protected input shaft (stainless steel is for your option)
●Nodular iron cast, WCB or stainless steel shell is for your option.
●Convenient conversion, lift the limit pin, rotating eccentric device to 100°, limit pin limit automatically to pneumatic operation; On the contrary, to manual operation.
●It can be installed with total gas safe control function, which cut off air source and exhaust automatically, has acquired national patent certificate.
3.Product Details
4.Factory Workshop
Juhang has advanced processing equipment, high-precision CNC machines, four-axis machining center and advanced technology, which can guarantee the high quality of precision products.The company also has laboratories for high-precision testing instruments.Sophisticated technology and strict quality management system, furthermore gathering professional technical elites and world-leading technology team, taking advantages of new technology, new processing and new materials to ensure the stability and reliability of our products.
5.Quality Inspection
Juhang has a strict inspection system, the most advanced inspection equipment and strict scientific management, so that each product from Juhang can meet various customer’s selection and requirements.
6.Company Certification
7.Exhibition
8.FAQ
Q: Can you provide more detailed information about stainless steel manual override gear box?
A: Yes, of course. You can send your questions to us via e-mail. We will send you the information you need.
Q:Are you a trading company or a manufacturer?
A:We are manufacturer.
Q: How to deliver? Because I'm really in a hurry!
A: Contact us and tell us your situation clearly. We will do our best to solve your difficulties.
Q:Which countries you mainly export?
A:USA, Turkey, Netherlands, Brazil, Dubai and so on.
Q: I would like to visit your factory, is it possible?
A: Of course, your visit is our honor.
