Pneumatic Actuator Rack and Pinion Double Acting JHA0020DA

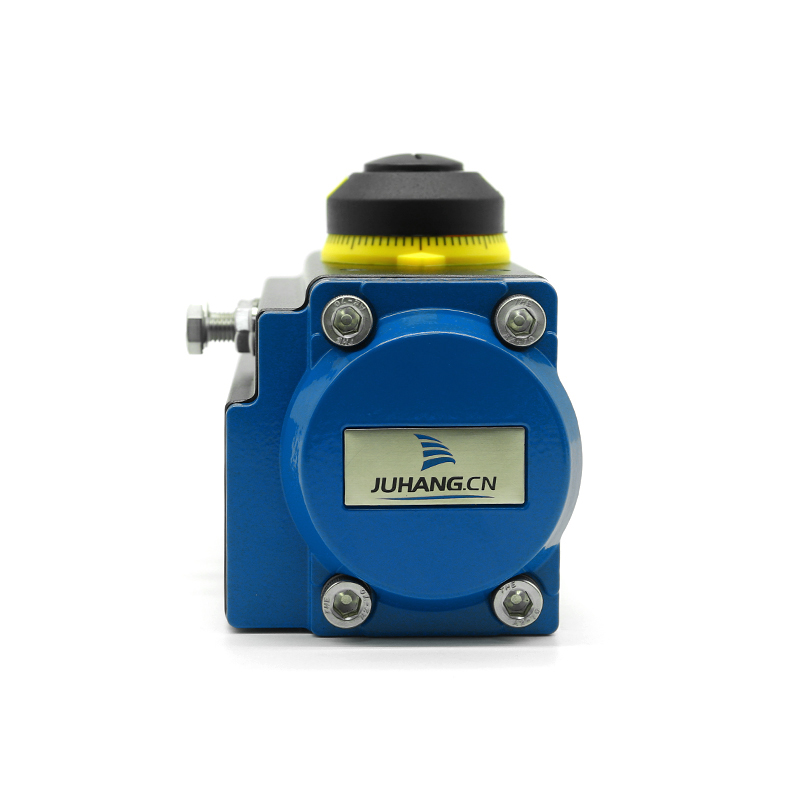

1.Product Introduction

The Rack and Pinion Pneumatic Actuator Double Acting JHA0020DA is powered by compressed air, driven by the straight motion of the piston rack to drive the gear transmission of the output shaft, and output by the angular stroke of the pneumatic actuator. Widely used in ball valve, butterfly valve, plug valve and other angle stroke valve switch and adjustment, also can be applied to other rotary occasions, is the ideal device to achieve industrial pipeline automation control.

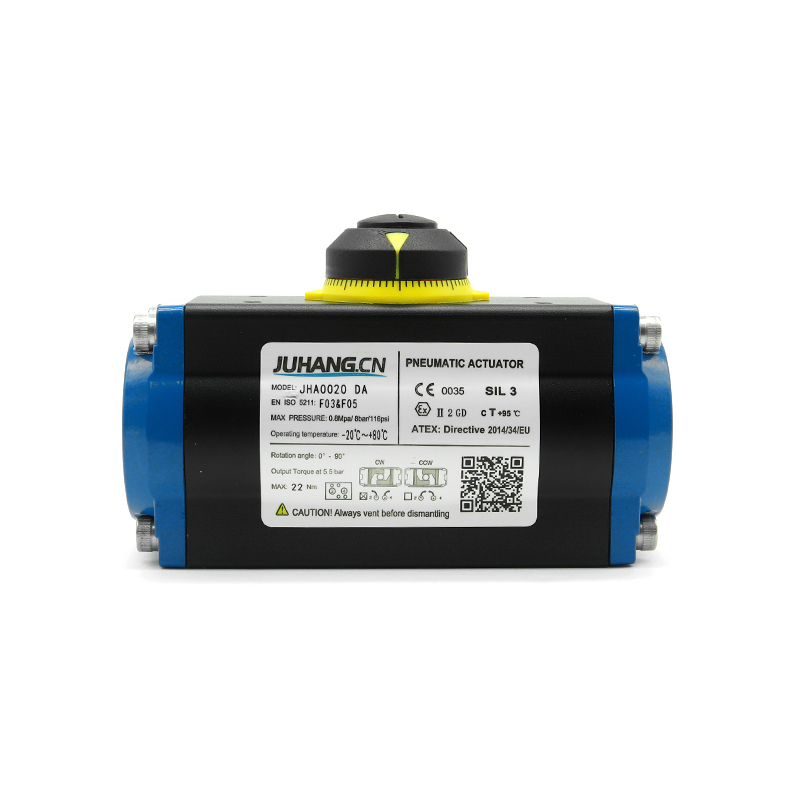

2. Product Parameter (Specification)

Model:JHA0020DA
Output torque: 8N.m - 32N.m
Structure: Rack and pinion
Application: Ball valve, butterfly valve, plug valve and other valve
Air Supply Pressure:2 - 8 bar
Cylinder body material: Aluminum alloy (surface coating: anodized)
End cover material: Die-casting aluminum alloy (surface coating: powder spraying)
Air source control: Through filtered compressed air, no need lubricate oil ,the oil must suit for NBR under lubricated condition.
Applicable ambient temperature:

Standard -20℃~80℃
Low temperature -40℃~80℃
High temperature -15℃~150℃
Flange standard: ISO 5211
Rotate stroke:0° - 90°(+/-5°)
Service life: Maintenance-free and low friction , switch service life more than 1 million times.

3.Product Features

Rack and Pinion Pneumatic Actuator Double Acting JHA0020DA has the below characteristics:
●Structure : compact rack and pinion pneumatic actuator.
●Low friction ,long service life and the switching times up to 1000,000 times.
●Applied to angular stroke valves, ball valves, butterfly valves, plug valves and other valves.
●Mounting flange in accordance to ISO 5211,control valve with VDI/VDE 3845 (NAMUR) standard.
●High quality aluminum alloy material, surface coating by anodized, hard anodized, anodized &Teflon, anodized &Powder painting and other options for special demands and requirements .

●Certificate obtained : ATEX, EAC,CE, SIL3, ISO9001:2015 certificate.
●High-end products, excellent quality, complete certification system.
●All products in the factory undergo a rigorous testing, each individual is marked with tracking code for quick identification and complete tracking service.

4.Product Details

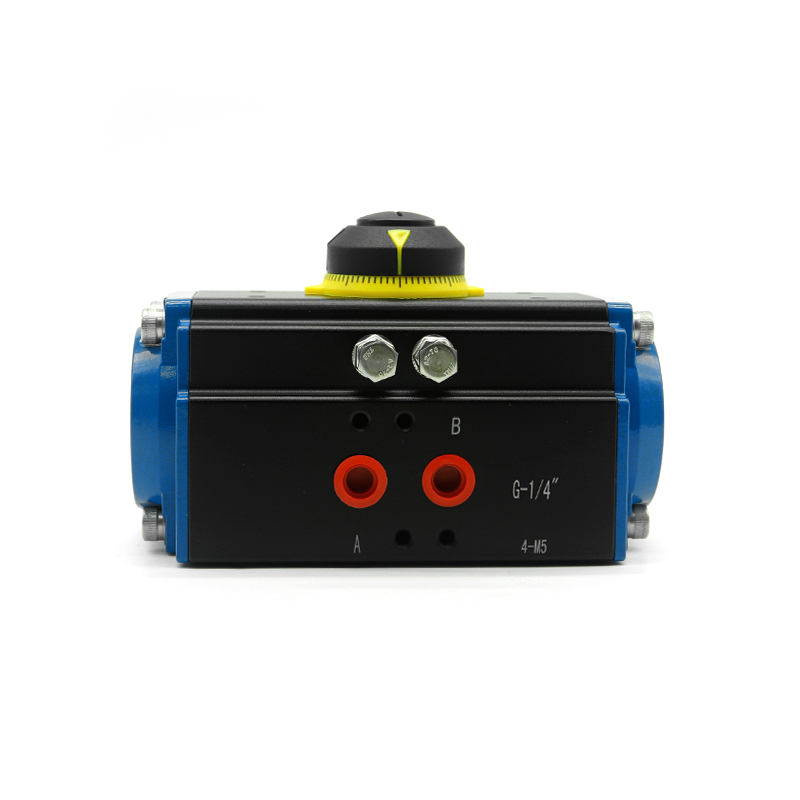

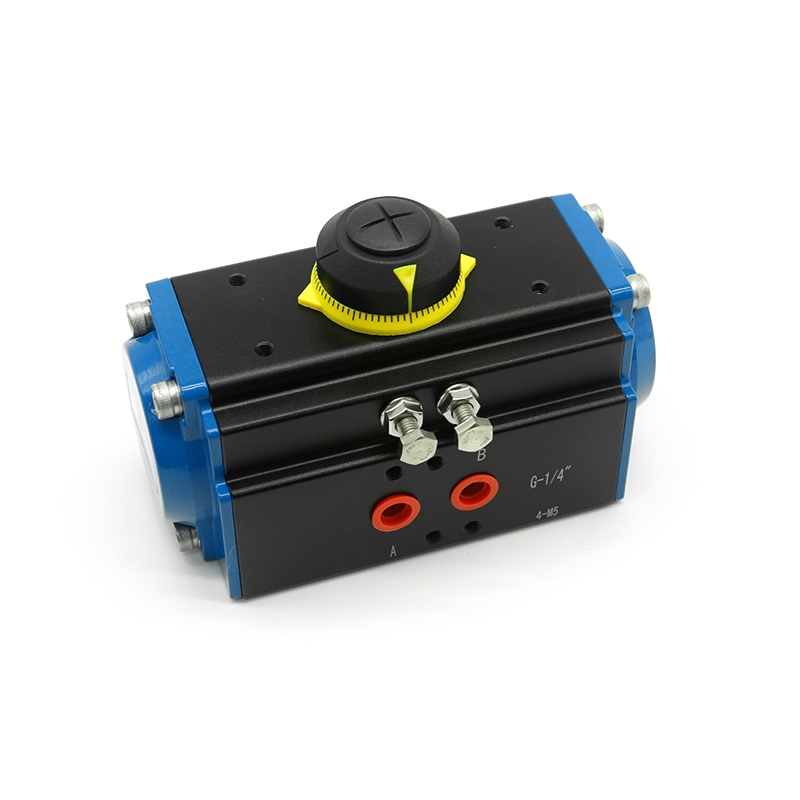

The top of the double acting pneumatic actuator conforms to VDI/VDE 3845 standard installation, which is convenient for installation of positioner , limit switch, and other accessories.

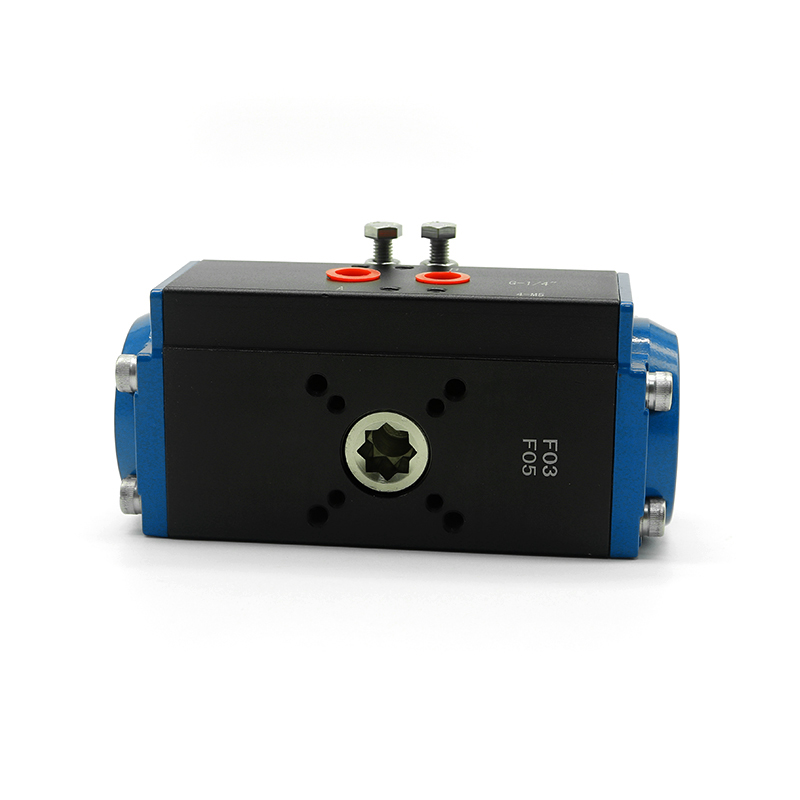

The bottom mounting surface (valve connection surface) is designed in accordance with ISO 5211 standard. It can be directly installed on manual override or valve.
